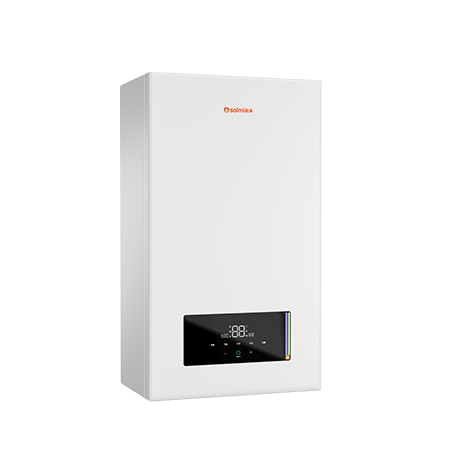

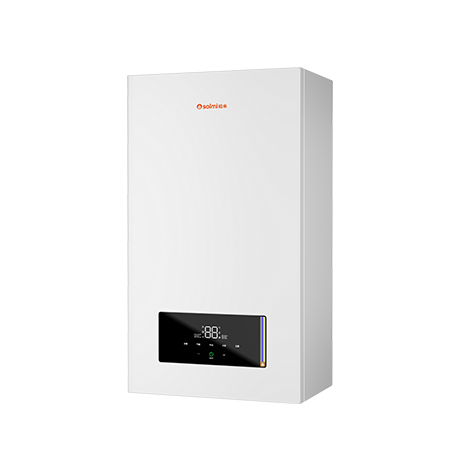

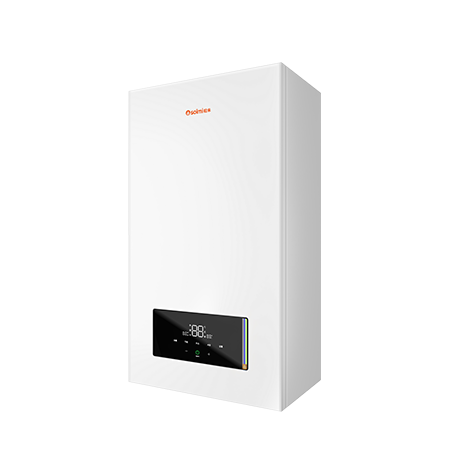

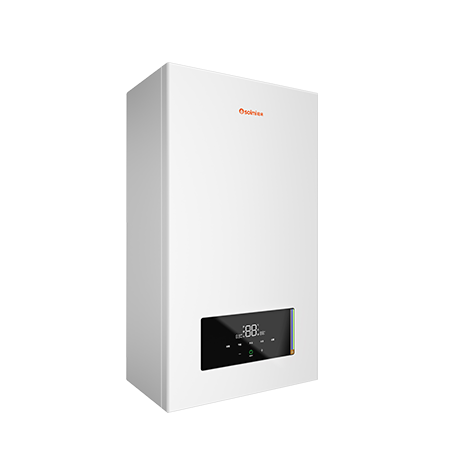

Product Details
1、p to 16L Smart High Water Output Meets multi-point water usage needst
2、Intelligent Segmented Combustion Warm in winter, never too hot in summer
3、Automatically adjusts comfortable water temperature Based on seasonal and inlet water changes
4、Dual Inverter Operation for Greater Stability Enjoy a peaceful and comfortable daily experience
5、245mm Ultra-Slim Body Sleek design that saves space
6、6-Year Full Unit Warranty Worry-free after-sales support
Product Parameters
Heating
| Product Model | L1PB20-RX102 | L1PB26-RX102 | 单位 |
| Recommended Heating Area | 60~150 | 60~200 | m² |
| Gas Type | NG(12T) | NG(12T) | |
| Energy Efficiency Rating | Grade 1 Energy Efficiency | Grade 1 Energy Efficiency | |
| Thermal Efficiency | >89 | >89 | % |
| Rated Heating Load | 20.0 | 26.4 | kW |
| Minimum Heating Load | 8.9 | 11 | kW |
| Dimensions (L × W × D) | 704x403x245 | 704x403x245 | mm |
DHW
| Hot Water Output Capacity (Δt = 25K) | 13.6 | 15.5 | kg/min |
| Minimum Domestic Hot Water Output | 3.1 | 3.1 | kW |
